Medizio YESON E 22L BLACK LED Autoclave
- YESON E Series (LED) autoclave, 22-liter chamber, classified as Class B in accordance with EN 13060.
Product description

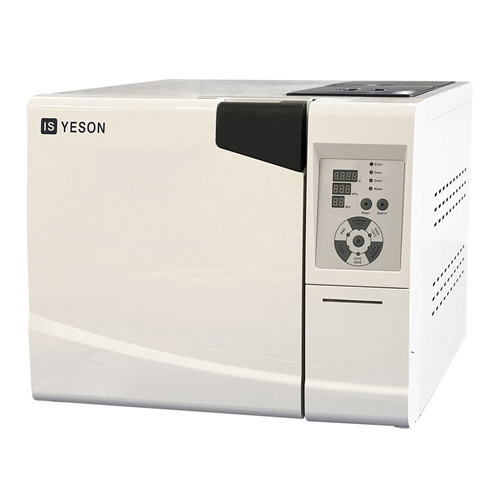

Medizio YESON E 22L BLACK LED Autoclave
YESON E Series (LED) autoclave, 22-liter chamber, classified as Class B in accordance with EN 13060. The device is intended for use in: hospitals, medical facilities (including clinics), such as doctors’ offices and dental offices, as well as laboratories. The autoclave can also be used for non-medical and veterinary applications.
YESON E-Series (LED) autoclave with a capacity of 22 liters, classified as Class B in accordance with EN 13060.
The device is intended for use in hospitals, medical facilities (clinics), including doctors’ offices, dental offices, and laboratories.
The autoclave can also be used for non-medical and veterinary applications.
Features:
- Stainless steel chamber
- Built-in thermal printer
- Safety valve
- LED display
- Bacteriological filter
- Easy and intuitive operation
- 4 preset programs and 2 test programs
- Sterilization of packaged and unpackaged items
- Option to adjust sterilization time
- Test programs: Bowie & Dick / Helix Test and vacuum test (leak test)
- Option to maintain temperature until the next cycle
Application:
The YESON YS-22L-E (LED) autoclave is designed for the sterilization of invasive medical devices, ensuring a high level of safety and eliminating the risk of cross-contamination.
This device is ideal for use in:
- hospital wards,
- dental offices,
- ophthalmology clinics,
- biological institutes and research laboratories.
It is used to sterilize surgical instruments, dental instruments, syringes, and other tools used in medicine and cosmetology.
It processes packaged (single- and multi-layered) and unpackaged solid, porous, and hollow items, in accordance with the EN 13060:2004+A2:2010 standard.
The autoclave may also be used for non-medical and veterinary applications.
Warning: This device is not intended for the sterilization of liquids.
The autoclave may only be used by qualified users, such as:
- physicians,
- medical sterilization technicians,
- or other individuals with the appropriate knowledge and professional experience to operate the device in accordance with its intended use.
Product Features:
- Autoclave Model: YS-22L-E (LED)
- Medical device: Class IIb
- Chamber capacity: 22 liters
- Equipped with an LED display
- Built-in thermal printer
- Internal tanks for distilled water and waste water
- Loading method: basket with 3 trays
Technical specifications:
- Medical device: Class IIb
- Certificate of conformity with Directive 93/42/EEC (MDD)
- Chamber capacity: 22 liters
Operating conditions:
- Power supply: 230 V ±10%, 50/60 Hz
- Rated power: 1950 W
- Ambient temperature: +5°C to +40°C
- Relative humidity (%RH): ≤ 80%
- Atmospheric pressure: > 70 kPa
Operating conditions:
- Maximum operating pressure: 0.21 ~ 0.24 MPa / 2.1–2.4 bar
- Maximum operating temperature: 134°C ~ 137°C
Weight and dimensions:

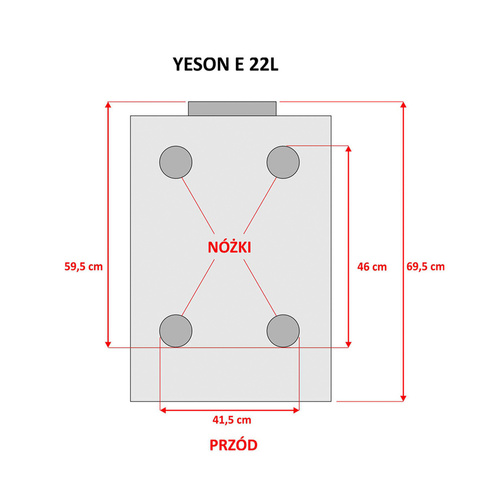

- Dimensions with door closed: 680 × 505 × 425 mm
- Net weight: approx. 60 kg
- Chamber dimensions: 250 × 350 mm
Tray dimensions:
- top: 19.5 × 39.5 cm
- middle: 19.5 × 39.5 cm
- bottom: 19.5 × 39.5 cm
Other:
- Process documentation: built-in thermal printer
- Technical specifications with overview
- Warranty: 24 months
