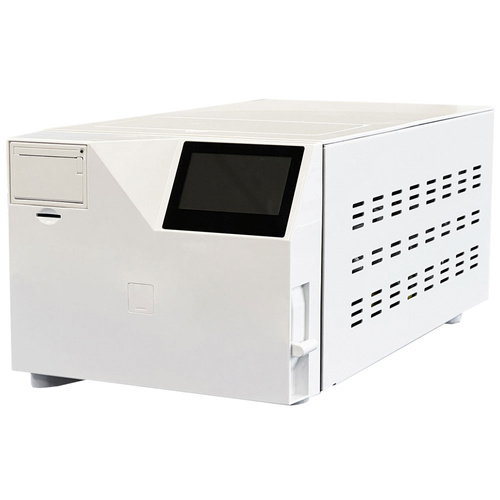

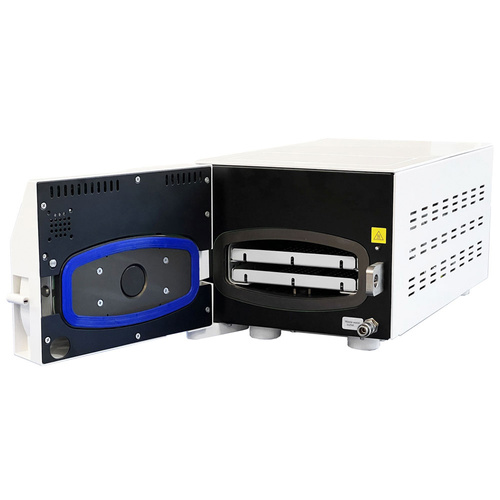

Medizio YESON YS-03L-E Autoclave
- YESON Model YS-03L-E autoclave, with a 3-liter chamber, classified as Class B in accordance with the EN 13060 standard.
Product description
Medizio YESON YS-03L-E Autoclave
YESON Model YS-03L-E autoclave, with a 3-liter chamber, classified as Class B in accordance with EN 13060. The device is intended for use in: hospitals, medical facilities (including clinics), such as doctors’ and dentists’ offices, as well as laboratories. The autoclave can also be used for non-medical and veterinary applications.
The YESON YS-03L-E autoclave is a modern, compact Class B device, compliant with the EN 13060 standard, equipped with a 3-liter chamber.
Despite its small size, it offers the full functionality of professional autoclaves, ensuring effective sterilization of medical, laboratory, and cosmetic instruments.
The device is designed for use in dental, medical, cosmetic, and veterinary offices, laboratories, and anywhere else where hygienic cleanliness of instruments is required.
Features:
- Class B – fractional vacuum
- Built-in thermal printer and SD card slot for data storage
- Built-in tanks for clean and waste water
- Water quality sensor ensuring safe operation
- Modern touchscreen control panel (4.3″)
- Multilingual menu, including a Polish language version
- Lock to prevent accidental door opening
- 4 automatic operating programs
- 2 test programs
- Extra drying program
- Preheating function
- Password protection against unauthorized changes to settings
Application:
The YESON YS-03L-E autoclave is designed for the sterilization of medical instruments resistant to high temperatures and moisture.
Ideal for:
- dental offices,
- medical and beauty clinics,
- laboratories, clinics, and veterinary facilities.
Warning: This device is not intended for sterilizing liquids.
The autoclave may only be used by qualified users, such as:
- doctors,
- medical sterilization technicians,
- and individuals with the knowledge and experience to operate Class B autoclaves.
Product Features:
- Autoclave Model: YS-03L-E
- Medical device: Class IIb
- Chamber capacity: 3 liters
- 4.3″ touchscreen display
- Built-in thermal printer and SD port
- Internal tanks for distilled water and waste water
- Loading method: stand with two trays
Technical specifications:
- Medical device: Class IIb
- Certificate of conformity with Directive 93/42/EEC (MDD)
- Chamber capacity: 3 liters
Operating conditions:
- Power supply: 230V ±10%, 50/60 Hz
- Rated power: 2900 W
- Ambient temperature: +5°C to +40°C
- Relative humidity (%RH): < 85%
- Atmospheric pressure: 80 kPa ~ 106 kPa
Operating conditions:
- Maximum operating pressure: 0.24 MPa
- Maximum operating temperature: 137°C
Weight and dimensions:
- Dimensions (with door closed): 595 × 287 × 248 mm
- Net weight: 24 kg
- Chamber dimensions: 175 × 55 × 280 mm
- Tray dimensions: 18 × 28 cm
Other:
- Process documentation: thermal printer + SD card slot
- Technical specifications with inspection report
- Warranty: 24 months
