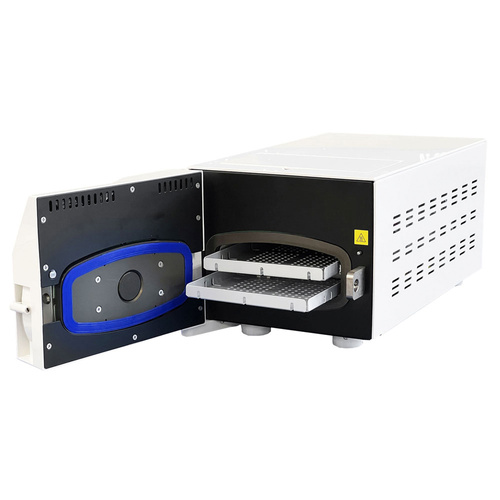

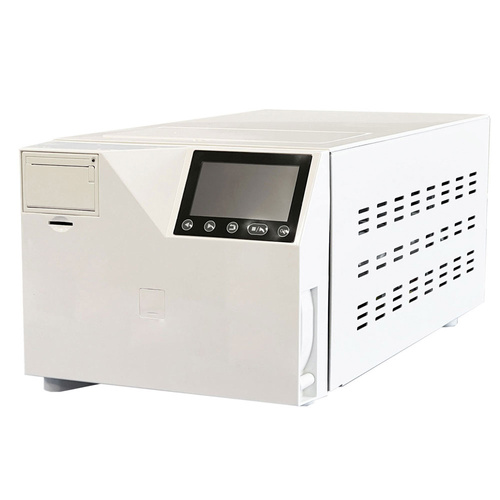

Medizio YESON YS-03L-E1 Autoclave

Medizio YESON YS-03L-E1 Autoclave

YESON Model YS-03L-E1 autoclave, with a 3-liter chamber, classified as Class B in accordance with EN 13060. The device is intended for use in: hospitals, medical facilities (including clinics), such as doctors’ offices and dental offices, as well as laboratories. The autoclave can also be used for non-medical and veterinary applications.

The YESON YS-03L-E1 autoclave is a modern Class B device, compliant with the EN 13060 standard, equipped with a 3-liter chamber.

Thanks to its compact design and full functionality, it is the ideal solution for facilities that need an efficient autoclave in a small form factor.

Designed for dental, cosmetic, medical, and veterinary offices, as well as laboratories and clinics, it guarantees effective and safe sterilization of medical instruments.

Features:

• Class B – fractional vacuum
• Built-in thermal printer and SD card slot for recording sterilization cycles
• Internal clean water reservoir
• Water quality sensor monitoring operating parameters
• 4.3″ LCD screen – easy to read and intuitive to use
• Multilingual menu, including a Polish language version
• Lock to prevent accidental door opening
• 4 automatic operating programs
• 2 test programs
• Additional drying program
• Preheating function
• Password protection against unauthorized changes to settings

Application:

The YESON YS-03L-E1 autoclave is designed for the sterilization of medical instruments resistant to high temperatures and moisture.

Ideal for:

• dental and medical offices,
• beauty salons and tattoo studios,
• laboratories and clinics,
• veterinary facilities

Warning: This device is not intended for sterilizing liquids.

The autoclave may only be used by qualified users, such as:

• doctors,
• medical sterilization technicians,
• and individuals with the knowledge and experience to operate Class B autoclaves.

Product Features:

• Autoclave Model: YS-03L-E1
• Medical device: Class IIb
• Chamber capacity: 3 liters
• 4.3″ LCD display
• Built-in thermal printer and SD card slot
• Internal distilled water tank
• Loading method: stand with two trays

Technical specifications:

• Medical device: Class IIb
• Chamber capacity: 3 liters

Operating conditions:

• Power supply: 230 V ±10%, 50/60 Hz
• Rated power: 2900 W
• Ambient temperature: +5°C to +40°C
• Relative humidity (%RH): < 80%
• Atmospheric pressure: 80 kPa ~ 106 kPa

Operating conditions:

• Maximum operating pressure: 0.24 MPa
• Maximum operating temperature: 137°C

Weight and dimensions:

• Dimensions (with door closed): 595 × 287 × 248 mm
• Net weight: 24 kg
• Chamber dimensions: 175 × 55 × 280 mm
• Tray dimensions: 18 × 28 cm

Other:

• Process documentation: thermal printer + SD card slot
• Technical specifications with overview
• Warranty: 24 months
